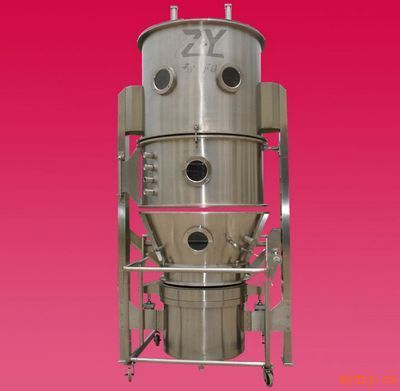

FBL 旋流流化床制粒包衣机

FBL Turbojet Fluid-bed Granulator Coater

★设备特点：Features of equipment

※ 旋流驱动空气分配器，确保物料有序运动
※ 旋流流态化，克服了沟流及死角
※ 制得的颗粒多孔、速溶，并具备一定强度，不易破碎
※ 吸潮性和流动性差的物料也能制成合格的颗粒

※Rotational flow drives air distributor in order to guarantee that material can move in order.
※Because of fluidization of rotational flow, it overcomes channel flow and died corner.
※The prepared granule is porous and can solve quickly and also has certain strength and is not easy to break.
※For materials such as Chinese traditional medicine and moisture-adsorbed materiality is easy to operate.

★应用概述 :General of applications

※FBL 旋流流化床制粒包衣机是将流化床做成叶片式结构的流化床，并使叶片呈一定斜度，让气流从叶片的间隙通过，形成环流状的强大气流，使物料呈旋涡状似的有序运动，同时安装在侧壁的气动喷嘴将粘合剂或包衣液喷入呈旋涡状的物料层，从而将粉体制成颗粒或获得连续均匀的衣膜。
※其广泛用于粉体制粒和粉体、颗粒、丸的薄膜、肠溶、缓控释包衣，以及各种物料的掩味、防潮、防水、着色、隔热、隔离等包衣。

※FBL Turbojet fluid-bed granulator coater has vane-shape bottom of hopper which has a certain lean, let the air flow pass through the rift then form circle-shape strong air flow, it makes material rotate as regular turbojet movement. Meanwhile the pneumatic nozzle installed under left wall spray binder or coating liquid into turbojet material, in this way granule or successive even film can be obtained.
※It is widely used in coating of powder, granule, pellet, enteric-releasing, slow and control releasing, and coating of smell covering, dam proof, antioxidation, water proof, heat isolation dyeing and separation etc.

★技术参数:Technical Data

规格Specification 项目Item			3	5	15	30	45	60	90	120	150	200	300	500
投料量Capacity		Kg/批kg/batch	3	5	15	30	45	60	90	120	150	200	300	500
原料容器容量Container voiume		L	12	22	45	100	155	220	300	420	550	670	1000	1500
风机功率Power of fan		Kw	4	4	5.5	7.5	11	15	18.5	18.5	22	22	30	45
噪音Noise		db	风机隔离处理噪音小于75分贝No more than 75db Separated of fan
压缩空气 Compressed air	压强 Pressure	Mpa	0.6
压缩空气 Compressed air	耗量Consumption	M3/min	0.4	0.4	0.6	0.9	0.9	0.9	1.1	1.3	1.6	1.8	2.4	3
蒸汽 Steam	压强Pressure	Mpa	0.4-0.6
蒸汽 Steam	耗量Consumption	Kg/h			71	60	99	120	130	140	161	180	310	450
电加热功率Power of electrical heater		Kw	6kw	9kw
主机尺寸 Size of installation for reference		H1(mm)			2870	2960	3140	3290	3400	3630	3720	3890	3970	4440
		H2(mm)	2600	2600	3230	3520	3630	3880	3890	4120	4210	4360	4440	4960
		H3(mm)	2410	2410	3630	2720	2900	3050	3160	3390	3480	3650	3710	4160
		B1(mm)	760	860	1110	1160	1360	1460	1560	1660	1760	1860	2060	2260
		B2(mm)	1060	1660	1760	1860	2260	2460	2660	2860	3060	3260	3660	4060
		L(mm)	850	1000	1100	1250	1570	1530	1530	1650	1650	1650	1750	1850
		￠1	300	400	650	700	900	1000	1100	1200	1300	1400	1600	1800
		￠2	150	180	180	250	250	280	280	280	280	280	315	355
