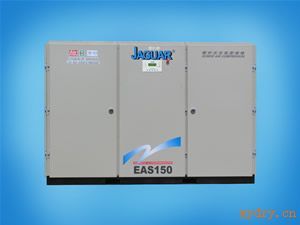

捷豹牌螺杆式空压机电标准型EAS10、EAS15、EAS20、EAS25、.....EAS400等
型 号 Model | EAS-10 | EAS-15 | EAS-20 | EAS-25 | EAS-30 | EAS-40 | |||
排气量/排气压力 Free Air Delivery/Discharge Pressure | (m3/min)/MPa | 0.7 | 1.35 | 1.8 | 2.5 | 3 | 3.8 | 5.2 | |
0.85 | 1.2 | 1.6 | 2.3 | 2.8 | 3.4 | 5 | |||
1.0 | 1 | 1.3 | 2 | 2.5 | 3.1 | 4.3 | |||
1.25 | 0.8 | 1 | 1.7 | 2 | 2.7 | 3.8 | |||
冷却方式 Cooling Model | 风 冷 Air-Cooled | 风冷或水冷 | |||||||
传动方式 Transmission Model | 皮带或齿轮 | ||||||||
排气温度 Discharge Temperature | ℃ | ≤环境温度+10 | 风冷≤环境温度+10；水冷≤40 | ||||||
润滑油量 Lubricant | 升/Liter | 7 | 7 | 9 | 10 | 10 | 20 | ||
噪音 Noise | dB(A) | 66 | 66 | 68 | 68 | 70 | 70 | ||
电动机 Motor | 功率 Power | KW/HP | 7.5/10 | 11/15 | 15/20 | 18.5/25 | 22/30 | 30/40 | |
转速 Rotate speed | RPM | 1440 | 1460 | 1460 | 1470 | 1470 | 1470 | ||
启动方式 Straing Method | 直接启动 | Υ-Δ 启动（Starter) | |||||||
电源 Electricity | 220V/380V/415V 50HZ/60HZ | ||||||||
外型尺寸 Dimension | 长 Length | mm | 850 | 1050 | 1050 | 1150 | 1150 | 1200 | |
宽 Width | mm | 700 | 800 | 800 | 850 | 850 | 950 | ||
高 Height | mm | 1050 | 1100 | 1100 | 1250 | 1250 | 1450 | ||
重量 Weight | KG | 520 | 650 | 650 | 770 | 770 | 1080 | ||
出口管径Air Outlet Pipe Diameter | inch | 1" | 1" | 1" | 11/4" | 11/4" | 11/2" | ||
冷却水出入口管径Cooling Water Pipe Diamenter | inch |
|
|
|
| 3/4"(内牙) | 3/4"(内牙) | ||
冷却水用量 Cooling Water Dosage | L/min |
|
|
|
| 80 | 80 | ||
| |||||||||
型 号 Model | EAS-50 | EAS-60 | EAS-75 | EAS-100 | EAS-125 | EAS-150 | |||
排气量/排气压力 Free Air Delivery/ Discharge Pressure | (m3/min)/MPa | 0.7 | 6.5 | 8 | 10.5 | 14.1 | 16 | 20.5 | |
0.85 | 6.1 | 7.5 | 9.8 | 12.8 | 15 | 19 | |||
1.0 | 5.5 | 7 | 8.6 | 11.6 | 13.6 | 17.2 | |||
1.25 | 4.9 | 6 | 7.6 | 10 | 12.2 | 14.8 | |||
冷却方式 Cooling Model | 风冷或水冷 Air-Cooled .&.Water-Cooled | ||||||||
传动方式 Transmission Model | 皮带或齿轮 | 齿轮 | |||||||
排气温度Discharge Temperature | ℃ | 风冷≤环境温度+10； 水冷≤40 | |||||||
润滑油量 Lubricant | 升/Liter | 20 | 29 | 29 | 70 | 70 | 94 | ||
噪音 Noise | dB(A) | 72 | 73 | 73 | 75 | 75 | 77 | ||
电动机 Motor | 功率 Power | KW/HP | 37/50 | 45/60 | 55/75 | 75/100 | 90/125 | 110/150 | |
转速 Rotate speed | RPM | 1480 | 1480 | 1480 | 2970 | 2970 | 2980 | ||
启动方式 Straing Method | Υ-Δ 启动（Starter) | ||||||||
电源 Electricity | 220V/380V/415V 50HZ/60HZ | ||||||||
外型尺寸 Dimension | 长 Length | mm | 1200 | 1450 | 1450 | 2000 | 2000 | 2200 | |
宽 Width | mm | 950 | 1100 | 1100 | 1250 | 1250 | 1600 | ||
高 Height | mm | 1450 | 1530 | 1530 | 1700 | 1700 | 1860 | ||
重量 Weight | KG | 1080 | 1420 | 1420 | 1950 | 2050 | 3000 | ||
出口管径 Air Outlet Pipe Diameter | inch | 11/2" | 2" | 2" | 2"法兰 | 2"法兰 | 2"法兰 | ||
冷却水出入口管径 Cooling Water Pipe Diamenter | inch | 3/4"(内牙) | 1"(内牙) | 1"(内牙) | 11/2"(内牙) | 11/2"(内牙) | 11/2"(内牙) | ||
冷却水用量 Cooling Water Dosage | L/min | 100 | 200 | 200 | 300 | 300 | 300 | ||
| |||||||||
型 号 Model | EAS-175 | EAS-200 | EAS-300 | EAS-350 | EAS-400 |
| |||
排气量/排气压力Free Air Delivery/Discharge Pressure | (m3/min)/MPa | 0.7 | 24.1 | 28.3 | 38.5 | 43.8 | 52 |
| |
0.85 | 22.9 | 27 | 35.8 | 41.4 | 48 |
| |||
1.0 | 20.5 | 24.5 | 32.2 | 37.8 | 43 |
| |||
1.25 | 16.8 | 20.5 | 28.5 | 33 | 39 |
| |||
冷却方式 Cooling Model | 风冷或水冷 Air-Cooled .&.Water-Cooled | ||||||||
传动方式 Transmission Model | 齿轮 | ||||||||
排气温度 Discharge Temperature | ℃ | 风冷≤环境温度+10；水冷≤40 | |||||||
润滑油量 Lubricant | 升/Liter | 112 | 112 | 120 | 120 | 120 |
| ||
噪音 Noise | dB(A) | 77 | 79 | 79 | 80 | 80 |
| ||
电动机 Motor | 功率 Power | KW/HP | 132/175 | 160/220 | 200/270 | 250/340 | 315/430 |
| |
转速Rotate speed | RPM | 2980 | 2980 | 2980 | 2980 | 2980 |
| ||
启动方式 Straing Method | Υ-Δ 启动（Starter) | ||||||||
电源 Electricity | 220V/380V/415V 50HZ/60HZ | ||||||||
外型尺寸 Dimension | 长 Length | mm | 2700 | 2700 | 3000 | 3000 | 3000 |
| |
宽 Width | mm | 1700 | 1700 | 1800 | 1800 | 1800 |
| ||
高 Height | mm | 1800 | 1800 | 1800 | 1800 | 1800 |
| ||
重量 Weight | KG | 3500 | 3800 | 4800 | 5000 | 6000 |
| ||
出口管径 Air Outlet Pipe Diameter | inch | 3"法兰 | 3"法兰 | 4"法兰 | 4"法兰 | 4"法兰 |
| ||
冷却水出入口管径 Cooling Water Pipe Diamenter | inch | 11/2"(内牙) | 11/2"(内牙) | 11/2"(内牙) | 11/2"(内牙) | 11/2"(内牙) |
| ||
冷却水用量Cooling Water Dosage | L/min | 400 | 400 | 450 | 450 | 450 |
| ||
