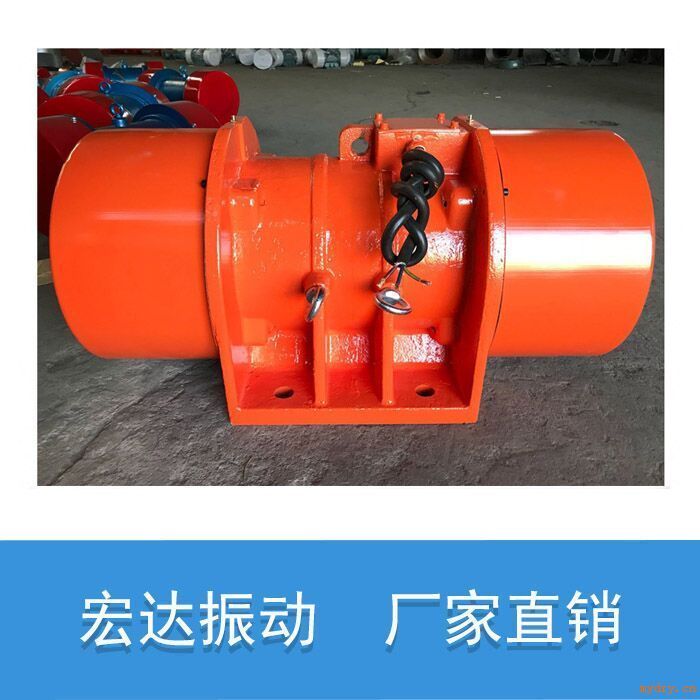

ZGY系列三相异步振动电机 ZGY惯性振动器
ZGY三相异步振动电机一、使用条件环境温度：-15℃~+40℃ 绝缘等级：F级海拔：<1000m 电源频率：50 Hz电压：380V工作方式：连续S1接法：Y/△安装方式：任意方向型号举例例：
二、技术参数序号 | 型号 | 额定 | 额定功率kw | 额定电流 | 额定转速 | 额定 | 温升 | 绝缘等级 | 防护等级 | 重量 |
1 | ZGY3-0.25/2 | 0-3 | 0.25 | 0.71 | 2720 | 30 | ≤80 | F | IP55 | 21 |
2 | ZGY5-0.37/2 | 0-5 | 0.37 | 0.96 | 2750 | 22 | ||||
3 | ZGY8-0.55/2 | 0-8 | 0.55 | 1.45 | 2880 | 28 | ||||
4 | ZGY10-0.75/2 | 0-10 | 0.75 | 1.73 | 2870 | 45 | ||||
5 | ZGY15-1.1/2 | 0-15 | 1.1 | 2.45 | 2900 | 58 | ||||
6 | ZGY20-1.5/2 | 0-20 | 1.5 | 3.74 | 2900 | 72 | ||||
7 | ZGY30-2.2/2 | 0-30 | 2.2 | 5.30 | 2900 | 102 | ||||
8 | ZGY2-0.12/4 | 0-40 | 3.0 | 6.20 | 2950 | 150 | ||||
9 | ZGY2-0.12/4 | 0-2 | 0.12 | 0.44 | 1440 | 20 | ||||
10 | ZGY3-0.18/4 | 0-3 | 0.18 | 0.6 | 1420 | 26 | ||||
11 | ZGY5-0.25/4A | 0-5 | 0.25 | 0.7 | 1420 | 29 | ||||
12 | ZGY8-0.37/4 | 0-8 | 0.37 | 0.96 | 1460 | 45 | ||||
13 | ZGY10-0.55/4 | 0-10 | 0.55 | 1.40 | 1450 | 52 | ||||
14 | ZGY12-0.6/4A | 0-12 | 0.6 | 1.82 | 1440 | 58 | ||||
15 | ZGY15-0.75/4A | 0-15 | 0.75 | 1.94 | 1430 | 60 | ||||
16 | ZGY20-1.1/4A | 0-20 | 1.1 | 2.75 | 1430 | 80 | ||||
17 | ZGY32-1.5/4A | 0-32 | 1.5 | 3.76 | 1450 | 115 | ||||
18 | ZGY40-1.8/4 | 0-40 | 1.8 | 4.2 | 1440 | 130 | ||||
19 | ZGY50-2.2/4A | 0-50 | 2.2 | 5.55 | 1450 | 196 | ||||
20 | ZGY75-3.0/4A | 0-75 | 3.0 | 7.36 | 1460 | 250 | ||||
21 | ZGY84-5.5/4 | 0-84 | 5.5 | 11.5 | 1455 | 320 | ||||
22 | ZGY100-7.5/4 | 0-100 | 7.5 | 15.92 | 1460 | 440 | ||||
23 | ZGY3-0.2/6 | 0-3 | 0.2 | 0.7 | 955 | 29 | ||||
24 | ZGY5-0.37/6 | 0-5 | 0.37 | 1.22 | 965 | 48 | ||||
25 | ZGY8-0.55/6 | 0-8 | 0.55 | 1.71 | 960 | 57 | ||||
26 | ZGY10-0.7/6A | 0-10 | 0.7 | 2.14 | 960 | 72 | ||||
27 | ZGY16-1.1/6A | 0-16 | 1.1 | 3.12 | 960 | 100 | ||||
28 | ZGY25-1.5/6A | 0-25 | 1.5 | 3.99 | 965 | 145 | ||||
29 | ZGY32-2.4/6A | 0-32 | 2.4 | 5.99 | 965 | 202 | ||||
30 | ZGY40-3.0/6A | 0-40 | 3.0 | 7.41 | 975 | 210 | ||||
31 | ZGY50-3.2/6A | 0-50 | 3.2 | 7.83 | 975 | 235 | ||||
32 | ZGY50-3.7/6A | 0-50 | 3.7 | 9.02 | 975 | 240 | ||||
33 | ZGY60-3.7/6A | 0-60 | 3.7 | 9.02 | 975 | 250 | ||||
34 | ZGY63-4.5/6A | 0-63 | 4.5 | 10.1 | 970 | 300 | ||||
35 | ZGY75-5.5/6 | 0-75 | 5.5 | 12.60 | 970 | 390 | ||||
36 | ZGY100-7.5/6 | 0-100 | 7.5 | 17.12 | 980 | 520 |
序号 | 型号 | 额定 | 额定功率kw | 额定电流 | 额定转速 | 额定 | 温升 | 绝缘 | 防护 | 重量 |
37 | ZGY135-9.0/6 | 0-135 | 9.0 | 19.2 | 980 | 380 | ≤80 | F | IP55 | 630 |
38 | ZGY160-11.0/6 | 0-160 | 11.0 | 23.5 | 980 | 750 | ||||
39 | ZGY180-13.0/6 | 0-180 | 13.0 | 27.8 | 985 | 845 | ||||
40 | ZGY30-2.2/8 | 0-30 | 2.2 | 6.70 | 720 | 315 | ||||
41 | ZGY50-3.0/8 | 0-50 | 3.0 | 8.05 | 725 | 330 | ||||
42 | ZGY75-5.5/8 | 0-75 | 5.5 | 15.14 | 735 | 595 | ||||
43 | ZGY100-7.5/8 | 0-100 | 7.5 | 17.8 | 735 | 710 | ||||
44 | ZGY135-9.0/8 | 0-135 | 9.0 | 21.2 | 735 | 810 | ||||
45 | ZGY160-11.0/8 | 0-160 | 11.0 | 25.8 | 740 | 970 | ||||
46 | ZGY200-15.0/8 | 0-200 | 15.0 | 34.9 | 740 | 1080 |
