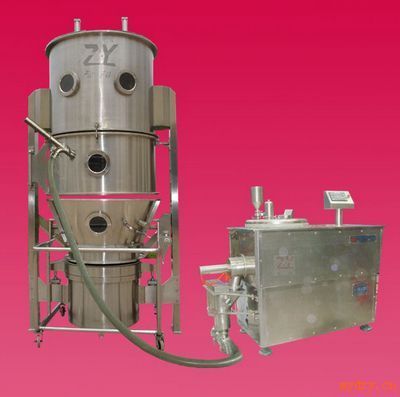

ZHG 固体制剂制粒机组

ZHG Solid Preparation Granulator Series

★应用概述 :General of applications

※该机组秉承传统制粒工艺，将湿法制粒，沸腾干燥制粒及湿法整粒各单机根据工艺特点，科学有效地组合起来，构成一条完整的固体制剂生产联动线。本联动机组在保留各单机独立使用功能的同时对粘度大的粒斗设有管道热风固化装置。使设备的生产效率和自动化程度得到了很大程度的提高。从而大大地降低了工人的劳动强度，使药品制备工艺得到了简化和提升，听高了药品的收得率，避免了药品在生产过程中的二次污染。符合 GMP 要求。

※On the basis of conventional granulating process, this granulator unit scientifically and effectively forms a complete production line for solid preparation, by integrating the wet-process granule separator as per their process characteristics. Besides the preserved independent functions of individual machines, this integral unit is also designed a pipeline carrying hot air to dry the high-viscosity materials, avoiding adhesion and accumulation. The efficiency and automation of the machine is greatly improved, which sharply reduces the workload of workers. This machine also simplifies and upgrades the process of medicine preparation, improves the yield of medicine, and avoids the secondary contamination of medicine during production. The machine complies with GMP requirements.

★设备特点：Features of equipment

※PLC 智能控制，自动化程度高，操作维修方便。

※ 全自动密封式上料，卸料系统，管道式联接，快开卡箍式联接方式，无死角，拆卸方便，易清洗。

※ 设备按 2bar 耐压标准设计，整机各部件有良好的接地方式。

※ 推车式整粒头，安装方便灵活。

※.全不锈钢制造，与物料接触部分采用 316L 优质不锈钢制作。
※ PLC intelligent control, highly automated and convenient for operation and maintenance.
※ Completely automated airproof material loading, closed type material unloading system, pipeline connection, quick clamp connector, free of blind corner, convenient for dismantling and easy for cleaning .
※ Adopting hoop join and easy to disassemble.
※ Using trolley-type granular separating apparatus, convenient and flexible for installing.
※ Completely made of stainless steel and 316L quality stainless steel used for parts exposed to materials.

★适用范围： Scope of Application

※ 片剂，冲剂（颗粒剂），胶囊剂。※.Tablets, granules, capsules;

※ 低糖，无糖，小剂量颗粒。※Sugar-free, sugar-less or small-dose granules;

※ 缓释颗粒。※.Granules of which the medicine effect will be controlled for slow release.

※. 速溶食品，饮料颗粒。※Ihstant food and beverage granules;

※ 化工颗粒制备。※.Chemical granules.

★技术参数:Technical Data

备名称 Machine Name	型号 Specification 项目 Item			FLB- 3	FLB- 5	FLB- 15	FLB- 30	FLB- 60	FLB- 120	FLB- 200	FLB- 300	FLB- 500
沸腾造粒干燥机 Fluid-Bed granulator dryer	原料容器 Container	容器 Volume	升 L	12	22	45	100	220	420	670	1000	1500
	原料容器 Container	直径 Dia	mm	300	400	550	700	1000	1200	1400	1600	1800
	设计生产能力 Design Capacity		kg/ 批 kg/batch	3	5	15	30	60	120	200	300	500
	蒸汽 Steam	压强 Pressure	Mpa	0.3-0.4
	蒸汽 Steam	耗量 Consumption	kg/h	10	18	35	60	120	140	180	310	400
	压缩空气 Compressed air	压强 Pressure	Mpa	0.6
	压缩空气 Compressed air	耗量 Consumption	m 3 /min	0.3	0.3	0.6	0.6	0.9	0.9	1.1	1.1	1.5
	噪声 Noise		dB	风机隔离处 (blower)≤85
	风机功率 Power of fan		Kw	2.2	3	4	5.5	11	18.5	22	30	45
电加热功率 Power of electricity heater			Kw	7	10	12	21	30	42	70	100	165
高效湿法造粒机 High Efficient Wet Granulator		型号 Model 项目 Item		HZ100			HZ250			HZ400
		容积 Volume	升 L	100			250			400
		生产能力 Capacity	千克 Kg	30-50			80-100			100-160
		压缩空气压力 Compressed air Pressure	Mpa	0.4-0.6
		压缩空气耗量 Compressed air consumption	立方米 / 分 m 3 / min	0.1			0.125			0.125
		电机功率 Power of motor	Kw	13.5			19.5			30
联动机组 Integral Unit		设备配置型号 Model		外型尺寸（长 × 高 × 宽） (mm) Overall Dimensions
		FLB-60/GHL-100		3500×2000×3200
		FLB-120/GHL-250		4000×2000×4500
		FLB-200/GHL-400		5000×2500×5000
