DLP多功能流化造粒包衣机

  • 2022-01-14 16:05:01
  • 来源:常州市智阳机械设备有限公司

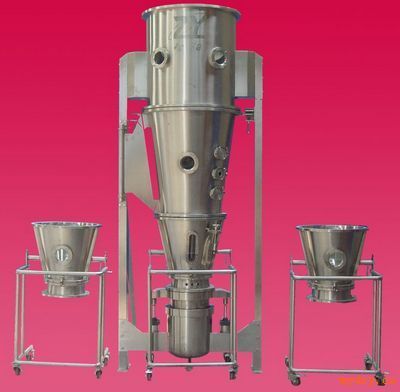

DLP多功能流化造粒包衣机

DLP多功能流化制粒包衣机

DLP fluid-bed granulator /pelletizer coater

★设备特点:Features of equipment

※集制粒、制丸、包衣多种功能于一体。
※粉体物料制粒。
※粉体物料包衣。
※粉体物料制丸。
※中药喷雾制粒及包衣。
※制备 10-30 目大颗粒冲剂。
※粉体、颗粒、丸的薄膜、肠溶、缓控释包衣。
※掩味、防潮、防氧化、防水、防热、着色、隔离包衣。
※粉状、粒状、团块状物料干燥。

※Multi-function such as granulating, pelleting, coating in one machine.
※Powder material granulating.
※Powder material coating.
※Powder material pelleting.
※Chinese medicine spray drying, granulating and coating.
※Make 10-30 meshes big granule.
※Film coating of Powder, granules and pellets, enteric release, slow and control release coating.
※Taste masking, odor, moistureproof, antioxidation, prevent water, heat insulation, coloration and separation coating
★※Powder, granule, agglomerate material drying.

★应用概述 :General of applications

※DLP 多功能制粒包衣实验机是集喷雾干燥 -- 制粒 -- 离心制丸 -- 流化包衣干燥于一体的多功能设备。该机兼容多种工艺操作。特别适用于医药、食品、化工等行业多品种、多剂型制粒、制丸及包衣。
※DLP Granulator/Coater/Pelleter is multi-function equipment integrated spray drying-granulating-centrifugal spray coating-fluid coating-drying in one body. The machine combined various process operations. Particularly it is suitable for granulating, pelleting and coating of various varieties in pharmaceutical industry, foodstuff industry and chemical industry,

★技术参数:Technical Data

规格Specification

项目Item

10

15

20

30

45

60

90

120

投料量Capacity

Kg/批kg/batch

2.5-10

3-15

5-20

7.5-30

10-45

15-60

20-90

30-120

原料容器直径Dir of container

Mm

700

800

900

1000

1100

1200

1400

1500

风机功率Power of fan

Kw

7.5

11

11

11

15

15

18.5

18.5

噪音Noise

db

风机隔离处理噪音小于75分贝No more than 75db Separated of fan

压缩空气

Compressed air

压强 Pressure

Mpa

0.6

耗量Consumption

M3/min

0.9

0.9

0.9

0.9

0.9

0.9

1.6

1.1

蒸汽

Steam

压强Pressure

Mpa

0.4-0.6

耗量Consumption

Kg/h

35

42

47

60

140

160

160

240

电加热功率Power of electrical heater

Kw

按用户要求设计By client

主机尺寸

Size of installation for reference

H1(mm)

2960

3350

3650

3720

3720

3850

3950

4190

H2(mm)

3320

3820

4120

4190

4190

4320

4420

4660

H3(mm)

2770

3130

3430

3500

3500

3630

3720

3975

B1(mm)

1160

1460

1560

1600

1760

1860

1960

2060

B2(mm)

1860

2460

2660

2860

3060

3260

4360

3660

L(mm)

1250

1400

1450

1500

1550

1600

1650

1700

180

250

250

280

280

280

280

315

所有参数仅作参考 , 视物料情况 , 本公司拥有变更权利 , 并不另行通知 .

*All datas are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon!
