CHG系列穿流式干燥机产品

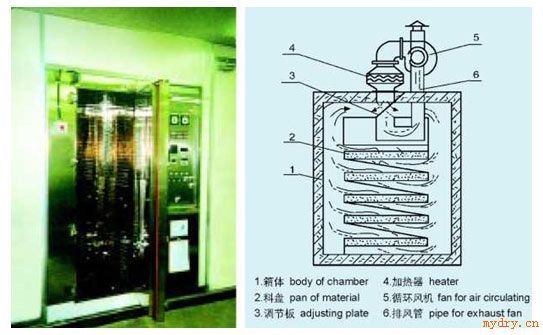

本公司*新推出自行研制的穿流式烘箱的一次重大革新。 ·穿流式干燥机的热风贯通科盘上下，对盘中物料进行“全加热”，极大地提供了物料干燥速率；其干燥速率是常规烘箱的 3-8 倍，它又定时地改变循环热风方向，使盘中物料温度趋于均匀。从而提高了物料干燥质量。工作原理如所示。应用 ·穿流式干燥机基本上能代替常规水平烘箱对物料的干燥，广泛应用于化工、医药、保健品、食品等行业，如颜料、化学试剂、原料药、冲剂、中药饮片、饲料、软胶囊、蜜线、水产品等。

穿流干燥机与水平流烘箱比较表

对比 compate 项目	水平流烘箱 traditional hoizonta丨 oven	穿流干燥机 air stream penetrating drier
传热 heat conduction	热风仅与料盘及物料表面传热 The heat conduction is carried out at the surface of raw material.	热风对全部物料进行传热 The heat conduction is carried out with all raw materials.
温，湿度 temperature and	料层表、里温、湿度不一 The temperature and humidity of raw material are not uniform in its surface and in its inner.	料层表、里温、湿度较为一致 The temperature and humidity of raw material are uniform in its surface and in its inner.
劳动强度 humidity	常开门翻料.劳动强度大 It needs to open the d〇〇r for turning oven raw material.The labor strengrh is high.	无须进行翻料 It does not need to open the door for turning over raw material.
热效率 labor strength	热效率为10~20% The heat efficiency is 10~20%	热效率提供到30%以上 The heat efficiency will be raised to over 30%.
干燥速度 heat efficiency	干燥速率低 Its dry speed is low.	干燥速率是水平流烘箱的3-8倍 Compared with the traditional oven,its dry speed has raised 3-8 times.
干燥质量 dry speed dry quality	干燥质量差较难达到GMP规范 Its dry quality is poor and can not meet the norm of GMP.	干燥质量高，能够达到GMP规范 Its dry quality is high and can meet the norm of GMP.

技术参数

参数 parameters 型号 model	外型尺寸(WxDxH) overall dimension mm	有效容积 effective colume(m3)	投料容积 feding volume (m3/time)	耗用蒸!(kg/h) consumed stream	电功率 electric power (kW)	风机功率 fan power (kW)	烘车 drying trolly (set)	总重量 totel weight (kg)
CHG-I	1620x1200x2300	0.92	0.16	25	4	7	1	900
CHG-II	1620x2260x2300	1.84	0.32	50	8	8	2	1600
CHG-III	1620x4880x2300	3.68	0.64	100	16	16	4	3000
